Mass production models |
¡@ |
|
|
Sunlight Readable Upgrade |
Upgraded models |
|
|
LCD-Module upgrade: |
¡@ |
|
|
TBU (transflective & brightness upgrade) |
Mitsubishi/Optrex
8.4"/10.4" XGA |
|
|
LRU (low reflection upgrade) |
NEC
8.4"/10.4" XGA |
|
|
¡@ |
AUO
5.7"/7.0"/8.4"/10.4"/12.1" SVGA/VGA |
|
|
¡@ |
Samsung
15.0"/17.0"/21.0" |
|
|
¡@ |
AUO
15.0"/17.0"/21.0" |
|
|
¡@ |
¡@ |
|
|
Custom-made Touch Screen upgrade: |
¡@ |
|
|
LRU (low reflection upgrade) |
Poson
5.7"/7.0"/8.4"/10.4"/12.1" |
|
|
¡@ |
¡@ |
|
|
¡@ |
¡@ |
|
|
¡@ |
¡@ |
|
|
¡@ |
¡@ |
|
|
|
|
|
What is Poson sunlight readable technology ? |
|
|
|
Transflective LCD technology can be applied to
certain selected regular TFT LCD to introduce |
|
the LCD with a reflective function.
With the imposed reflective function, the
modified |
|
LCD can reflect the ambient light passing the
LCD cell and utilize the reflected light beams |
|
as its illumination.
The stronger the ambient light is, the
brighter the LCD will appear. |
|
As a result, the modified LCD is viewable under
lighting conditions including direct sunlight. |
|
|
|
|
|
How does this technology work ? |
|
|
|
Transflective LCD modules hold both transmissive
and reflective properties, and the method |
|
of image display depends upon the conditions of
the ambient environment.
The display uses |
|
a backlight with a transmissive property in dark
environments, and uses external light with a |
|
reflective property in bright environments.
Our improved transflective method allows
for better |
|
color performance, which provides excellent
color characteristics similar to the
transmissive mode. |
|
The net reflectance rate of our transflective
LCD solution is from 0.9% to 1.3% varied from |
|
panels selected. |
|
|
|
|
|
|
|

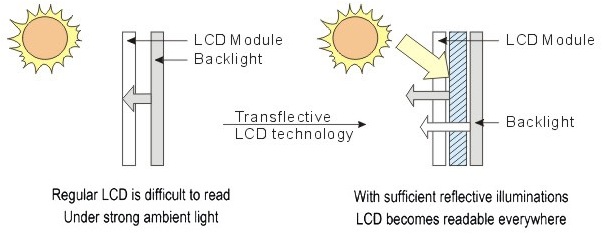

Technology / Function Diagrams |
|
|
Handling Cautions  |
|
Keep temperature at 0~50xC (32-121xF) and avoid
direct sunlight on the display. |
|
|
|
|
 |
|
|
|
|
|
Although transflective LCD is mainly used in
outdoor environment and can increase the
effective |
|
lights under sunlight, it is suggested the user
should keep the LCD in proper temperature for |
|
operation and storage.
To ensure the transflective LCD work
stably, it is needed the thermal |
|
solution in order to ensure display can work
stably on 0~50xC. |
|
|
|
|
|
|
|
Arrange proper contrast ratio to ambient light |
|
|
 |
|
Contrast ratio is a critical factor that can
influence the readability.
For example, if you put the |
|
LCD in very high ambient light environment; even
the brightness of display is pretty high; the |
|
the contrast between the ambient and the display
is too low.
Therefore, we might not be able |
|
to see the clear LCD screen image.
In order to be sunlight readable, the
contrast ratio to the |
|
ambient light need to be in proper range. |
|
|
|
|
|
|
|

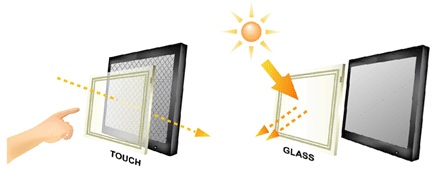

Use touch or low reflection rate |
|
|
|
If you demand for built-in protection glass, it
is needed to use the material whose reflection |
|
rate is less than 1%.
It should be careful when using
protection glass.
Generally, the reflection |
|
rate of protection glass can be as high as 4~6%,
but we can provide the reflection ration glass |
|
which is less 0.6%, so that the sunlight
readability performance can work very well. |
|
|
 |
|
|
|
Applications |
|
|
|
Here are some of the examples for your
reference. |
|
|
|
Commercial: |
|
PDA |
Mobile |
Monitor |
Mobile control system |
|
|
|
|
Notebooks |
|
Portable DVD Player |
|
|
|
|
|
ATM |
Motocycle |
Camera |
Fish Finder |
|
|
|
|
|
Marine/Car Navigation System |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Military: |
|
|
|
|
|
|
|
|
|
Rugged Notebooks |
Airborne |
Security Systems |
|
|
|
|
|
Hand-held Devices |
Unmanned Aircraft Control Station |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Industrial: |
|
|
|
|
|
|
|
|
Kiosks |
Security Systems |
Point-of-Sales |
|
|
|
|
|
Gas Pump |
|
|
|
|
|
|
|
|
